drone detection systems

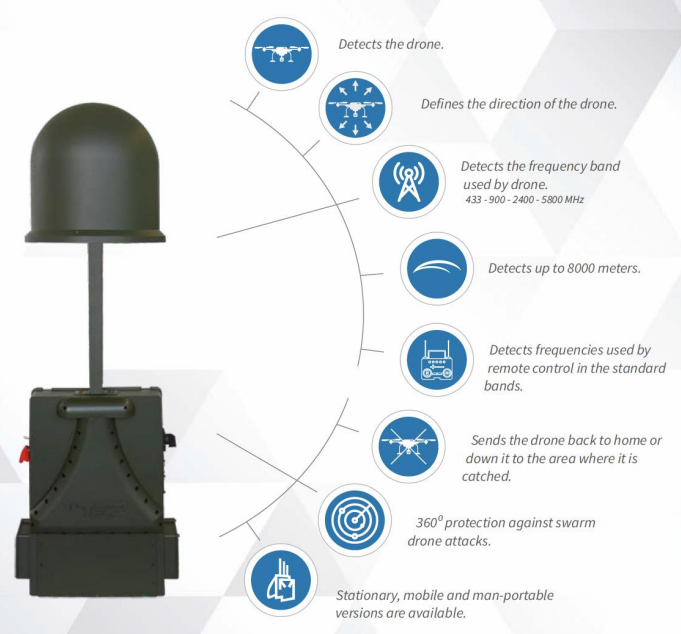

T&R Drone Detection system utilizes COTS devices and specially designed antennas and mechanics. T&R enables customers with rugged and reliable detection systems. Growing threat library identify the models and remote controllers.

Detection range is up to 7 kms and 4 degrees of accuracy. Equipped with easy to use user interfaces ease the operation while stationary or moving.

Open mechanical architecture makes it easy to mount on buildings, vehicles or standalone applications.

Hardware in the Loop and Automated Test Systems

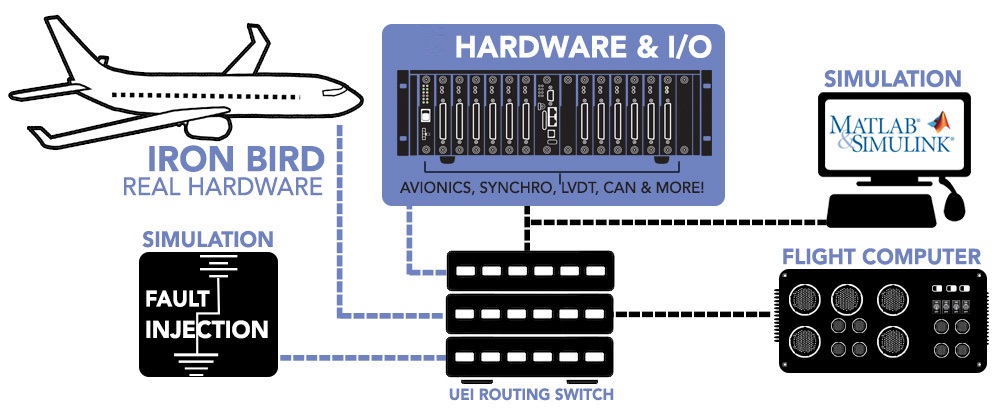

T&R designs to address the needs of HIL and ATE applications. All required I/O and bus options are available like, Discrete IOs, Analog IOs, Avionics and MIL buses, load and signal conditioning modules. A differentiator of the platform is LVDT-RVDT, Synchro-Reolver, Straing-Gage simulator modules for device simulations.

T&R designs and manufacture required harness and interconnects for signal integrity. Rack mount or portable systems are available.

radar test systems

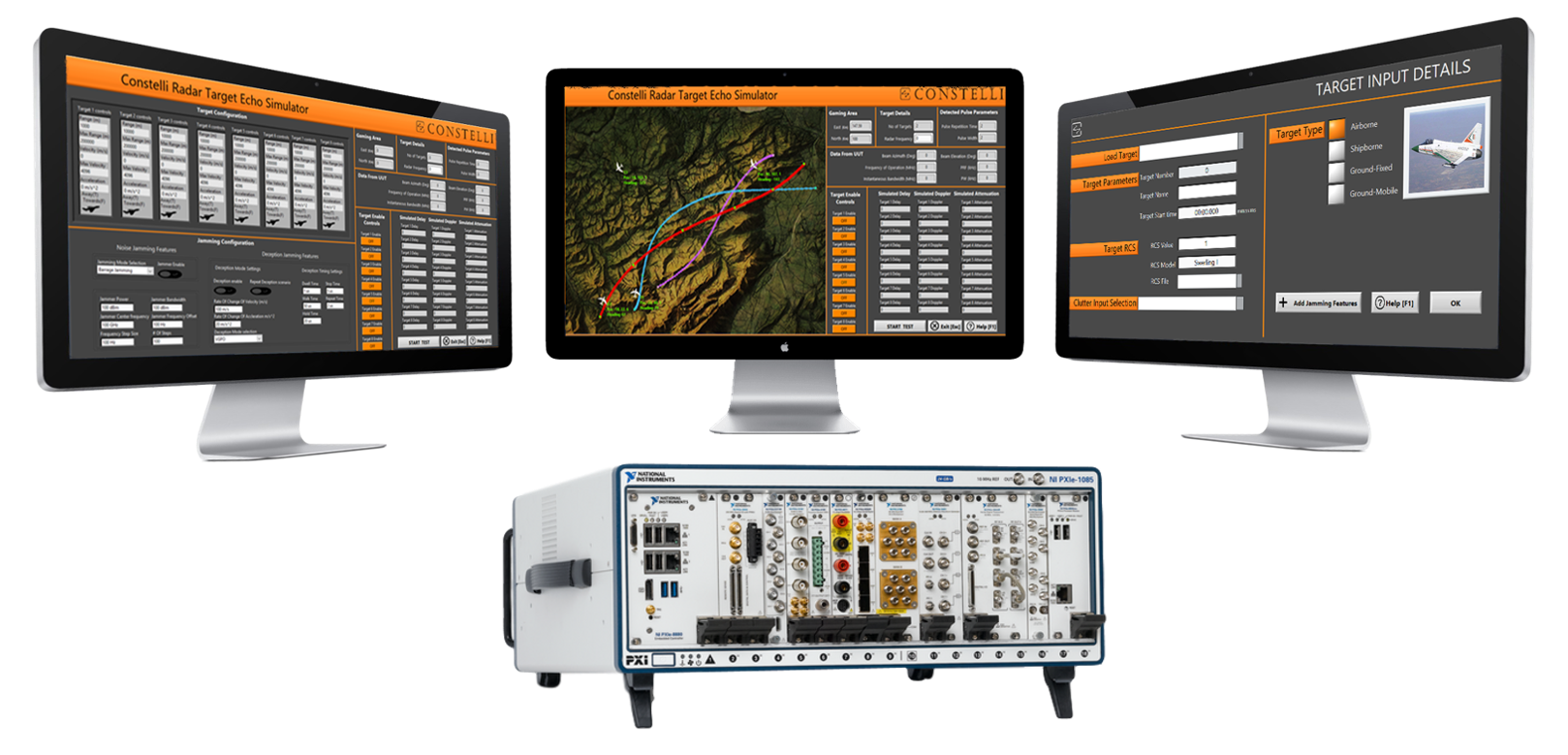

Radar Target Echo Simulator is one of its kind systems developed on NI PXI Platform using FPGA based Software in LabVIEW. For low bandwidth applications NI USRP SDRs are used.

The Echo Simulator supports simulation of target echoes for agile monopulse detection and tracking radars using 4-channel coherent simulation for Sum, ΔAz, ΔEl and Guard. Operating in 1 GHz to 18 GHz frequency range with up to 1 GHz of bandwidth, the system is capable of simulating target echoes with Range, Doppler, Radar Cross Section, ECM Features, Antenna Patterns, Net Losses, etc.

Constelli’s Scenario Definition Engine makes the system more sophisticated with trajectory definition for both Radar and Targets in three dimensions. The engine outputs the necessary target characteristics by computing relative parameters between radar and target.

Electronic Warfare Simulation System

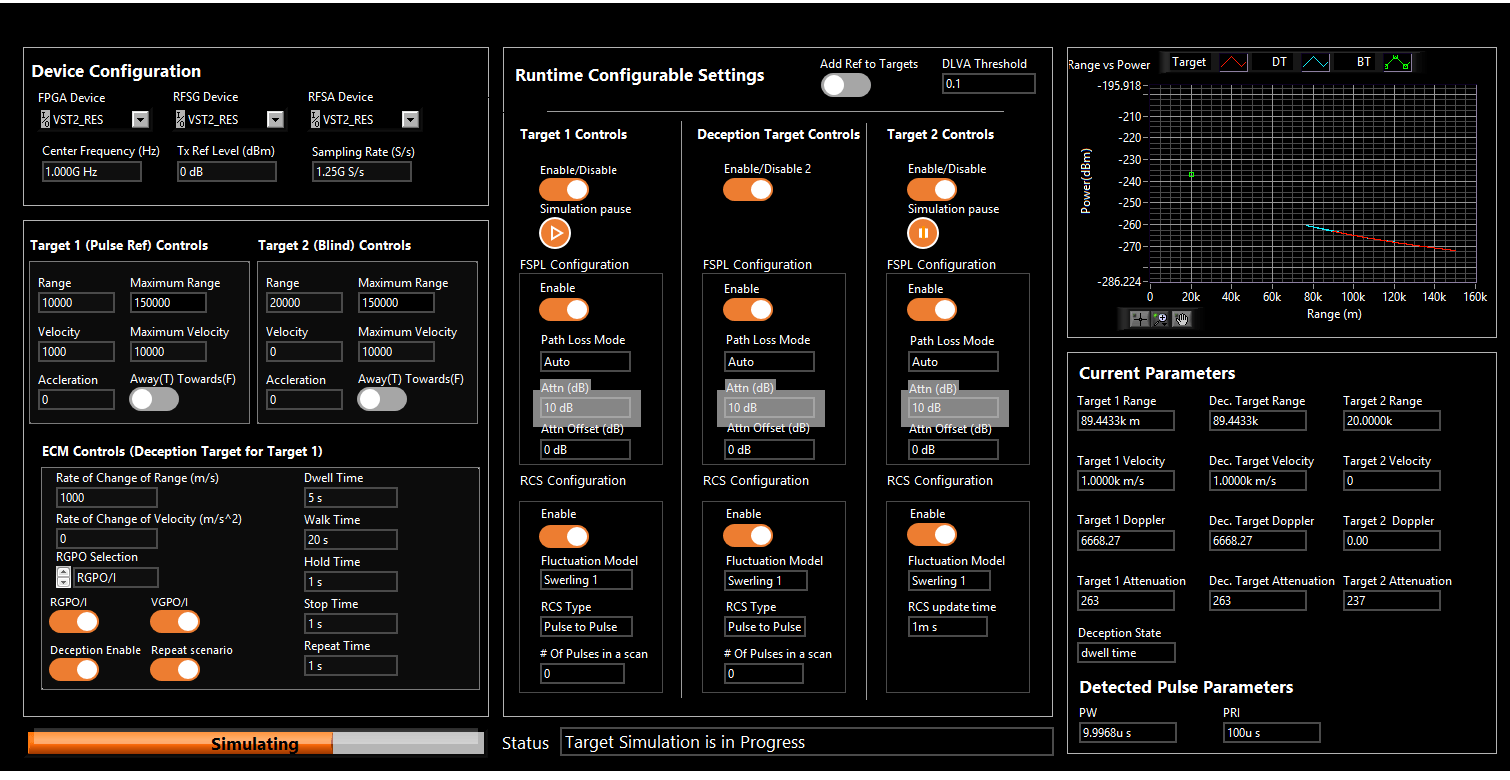

A hardware agnostic software suite to simulate environment for EW system tests. The system connects to industry standard simulation software platforms and generates real-time IQ data and works at 1kHz update rate.

Users can define any terrain, platforms, antenna patterns and scan schedule. For all platforms, trajectories can be defined.

test management software

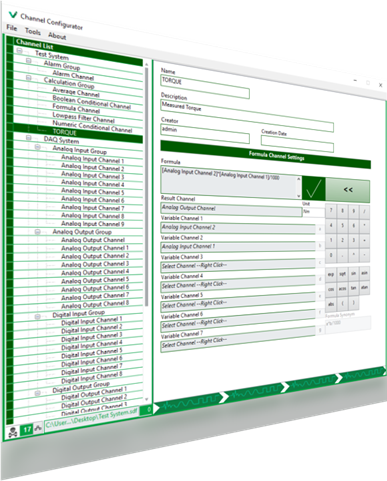

VSuite is a ready to run software for Engine Tests, Electromechanical Test Systems and Automated Test Systems, which offers a platform agnostic approach to any test need.

VSuite eliminates software development efforts. Test engineers can focus only the application requiring their domain expertise.

VSuite automatically detects selection of hardware and there are plenty of support packages for other industrial hardware.
